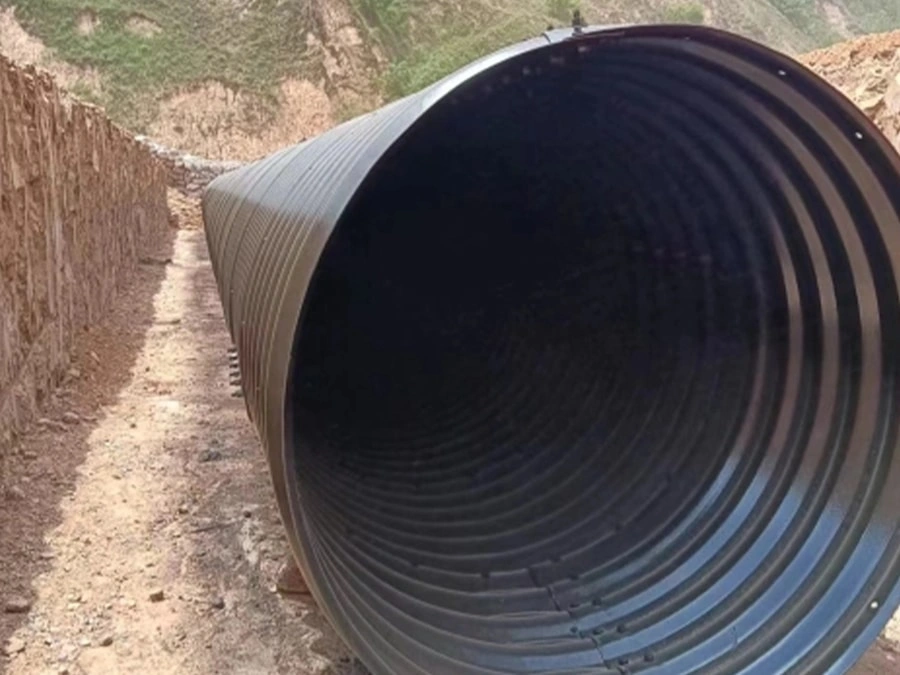

Our corrugated metal pipe is built to provide reliable performance in a variety of construction applications.
Adaptable and Robust
Wide Range of Sizes
Available in multiple diameters and profiles to suit project specifications and environmental conditions.
Coating Options
Choose from galvanized, aluminized, or polymer coatings to enhance durability against environmental factors.
Long-Lasting Performance
Designed to withstand severe weather conditions, ensuring a long service life with minimal maintenance.
The diameter less or equal to 4.0m, the metal corrugated pipe cost is as same as the slabculvert and arch culvert, parts culverts can save cost 5.9-6.4%, construction period is 20-50 days less, diameter 5.0m corrugated pipe cost is as same as the small bridge cost, construction time save 35 days, diameter 6.0m corrugated pipe is same cost as stone arch cluvert, save cost 18.2~23%, shorten construction time more than 50 days.
| Corrugation | 68×13mm,100×20mm,125×25mm,150×50mm,200×55mm,230×64mm,300×110mm,380×140mm,400×150mm |
| Diameter or span | 0.4m-24m |
| Thickness | 1.6mm-12mm |
| Zinc coating | 84μm each side |
| Steel standards: | ASTM A36,EN 10111,ISO 5951 |
| Application | .Multiplate structures pipe can be used as: - culverts - bridges - tunnels - under passed - ecological crossing - pedestrian tunnel - hangers - shelter - warehouse - stores for ammunition - belt conveyor protection - ventilating duct - and for reinforcement and reconstruction of existing structures as well. Metal corrugated pipe can be used for every class of service load provided that appropriate back filling is performed |
